IT/CCNA: Udemy
Sec12: passive interfaces
Last72
2018. 3. 21. 16:50
router rip
passive-int fast 0/1 #Disable update rip routing from f0/1
show ip protocols
Ctrl + a # move Cursor to front
passive-int default #make every port passive
no passive-int serial 0/1/0 #disable passive only for serial 0/1/0

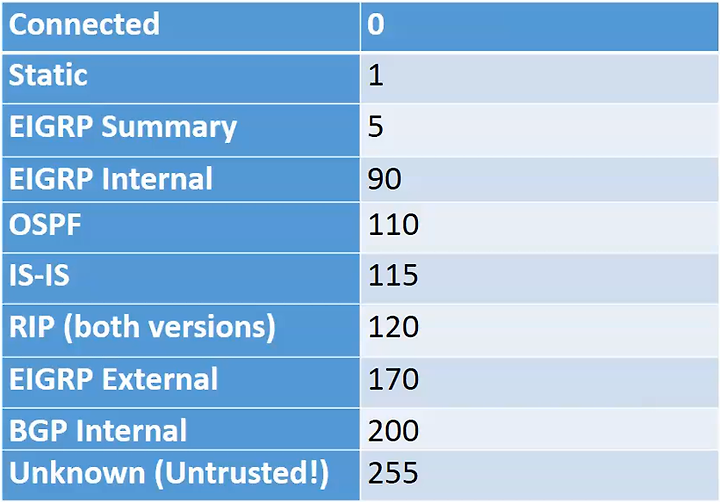

Administrative distances

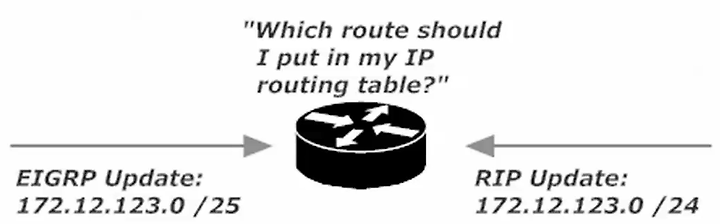

Longer subnet mask is used. in this case, EIGRP is used.

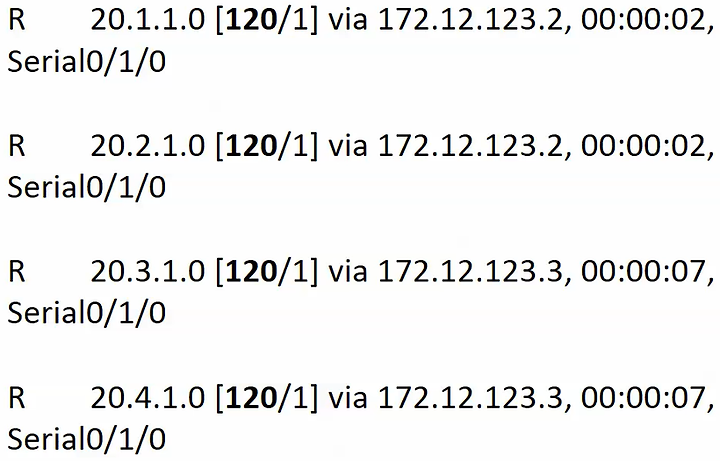

Default ad is 120. Lower AD has higher priority.

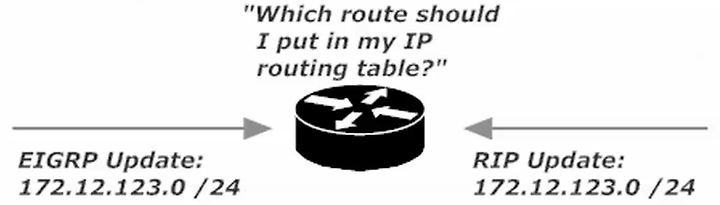

AD table demands on Routing protocol.
