Creating pfSense

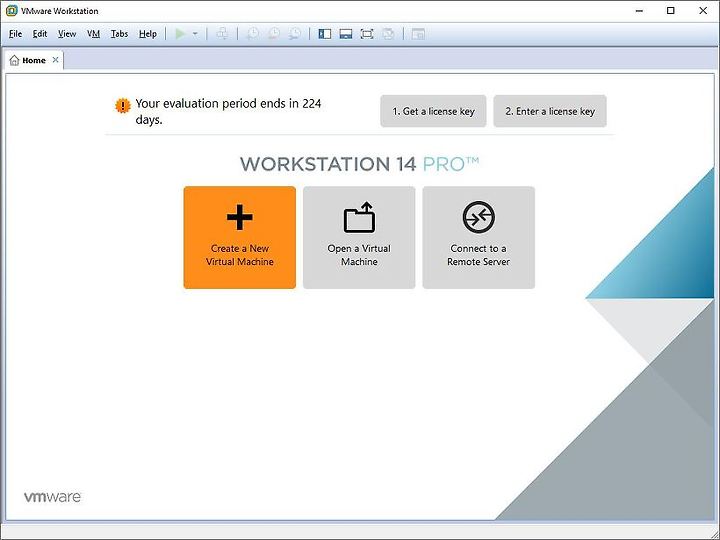

Create a New VM

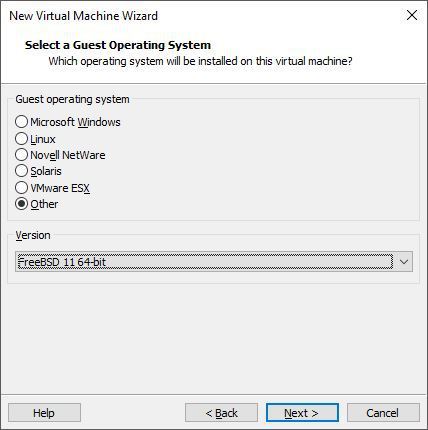

Keep it default and select install OS later

pfSense is one branch of FreeBSD

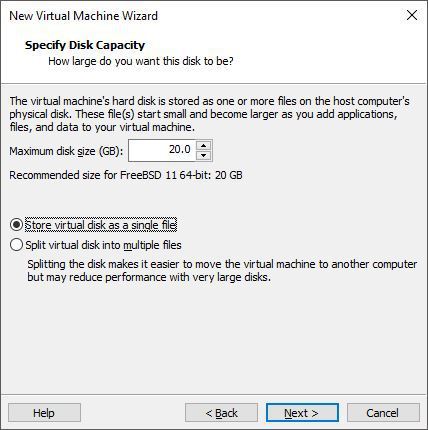

Keep it single file

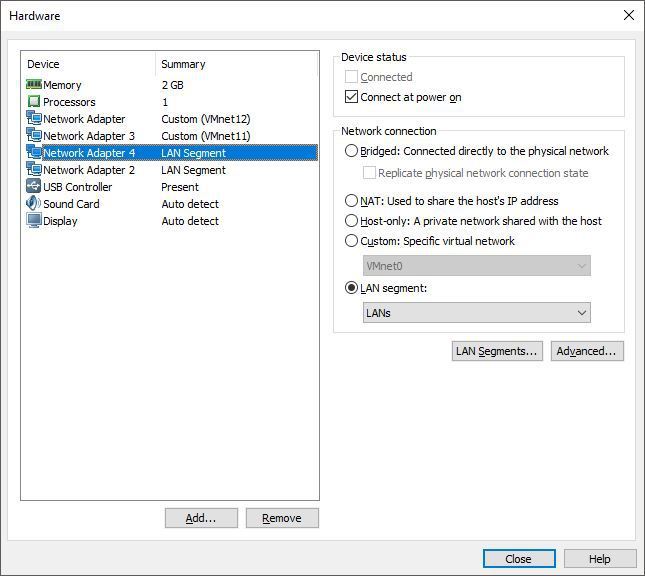

Add 3 more NIC 2 for bridge, 2 for LAN segment

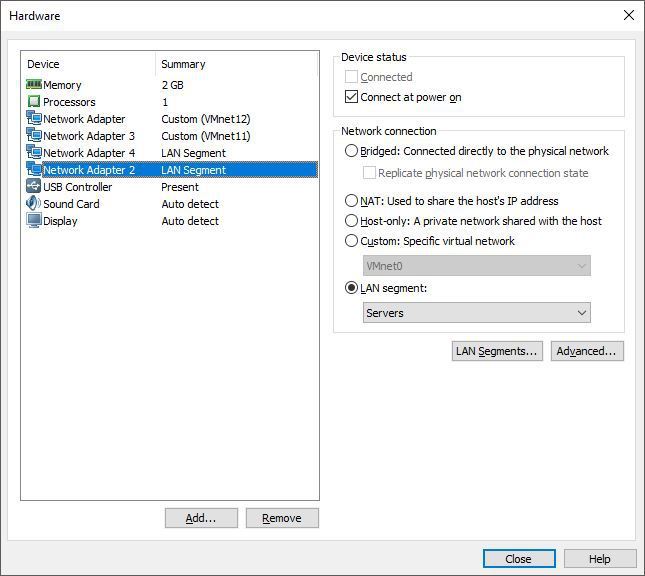

First LAN segment is LANs. Click LAN Segments to create one.

Second LAN segment is Servers

For bridged connection, go to Edit - Virtual Network Editor

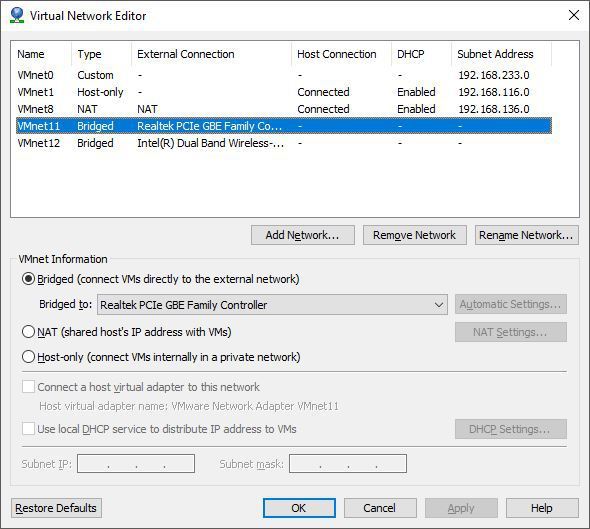

Click Add Network and select Bridged. Create another one.

Assign each physical NIC in this example, GbE and Dualband

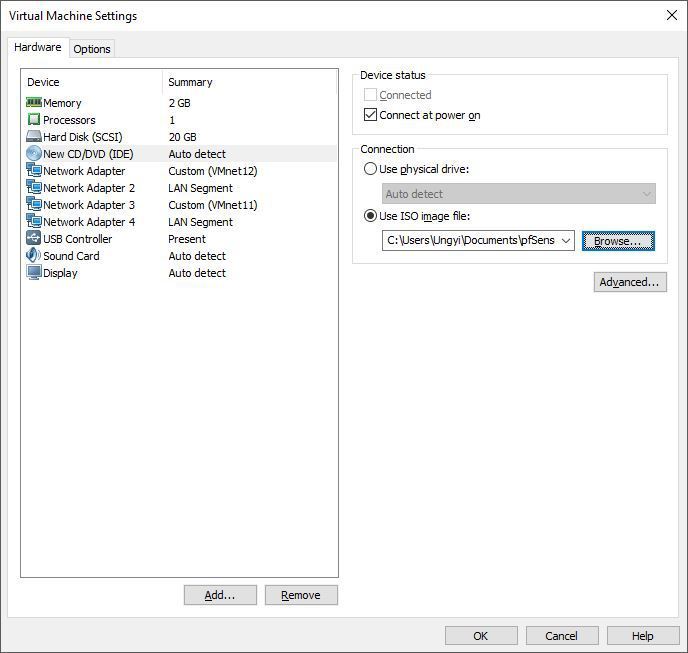

Add pfSense iso image

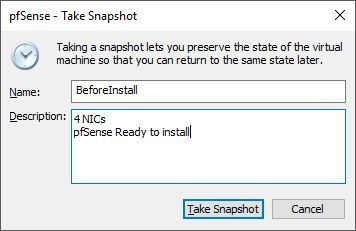

Before installation,

Accept on Copyright. Select Install. Select default keymap. Select Auto(UFS).

After install, select No on manual config. Reboot.

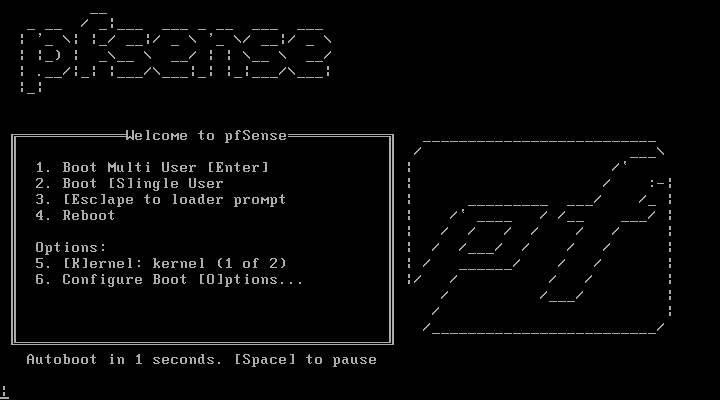

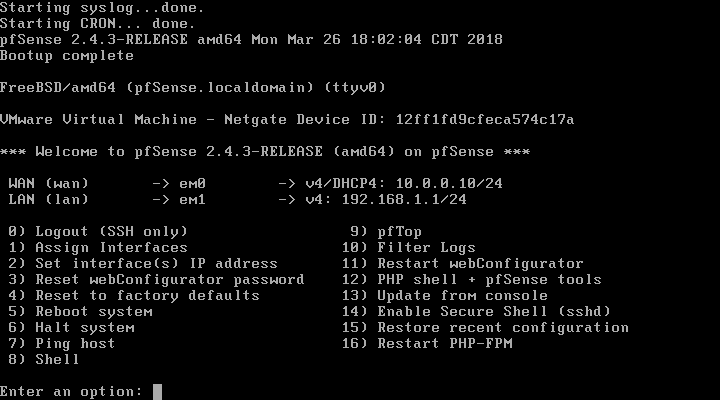

After install, this boot screen will show up

It may took few minute to boot up. LAN(em1) should be Servers LAN segment.
